Note:
● The product only includes the motherboard and the shell, no battery, and no charging cable.
● Capacity requirement: The minimum actual capacity of the battery pack cannot be less than 10,000 mAh, otherwise the battery will not be able to discharge power even if the power is not fully consumed.
● Maximun Capacity: 20000mAh(Battery not include)
● Battery မပါဝင်ပါ
Product details
Normal version parameters:
● Output power: 12W
● Single USB output: 5V/0.1-2.1A;
● Dual USB output: 5V/0.1-2.4A;
● IN input (micro Android port): 5V/2A (MAX);
● Type-C port input: 5V/2A (MAX);
● Other functions: Double-click to turn on the LED light; reverse installation will not burn the motherboard.

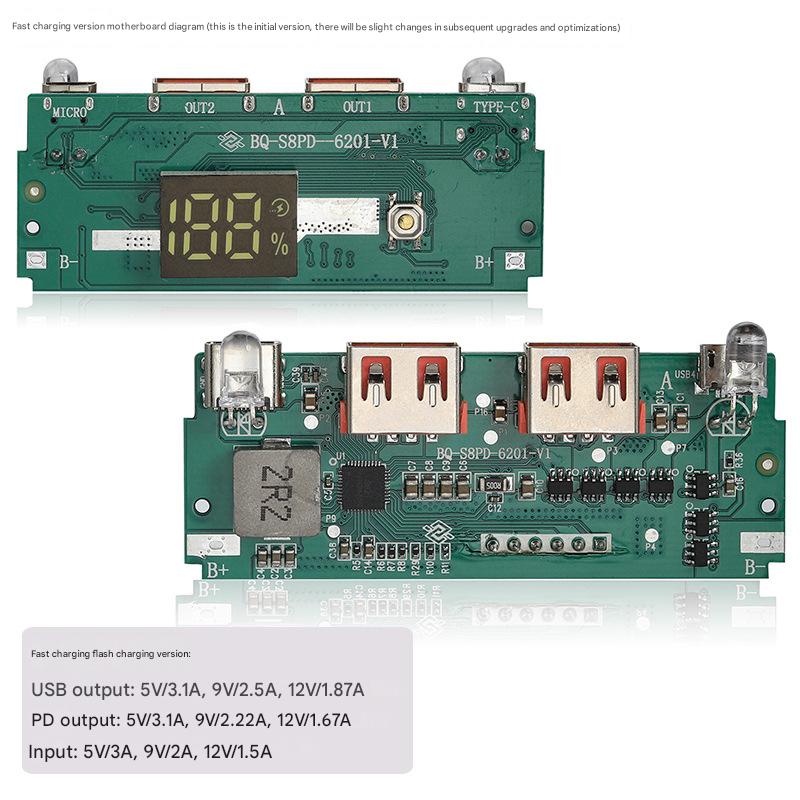

Fast charging version specifications:
● Output power: 22.5W
● OUT1 output: 5V/3.1A, 9V/2.5A, 12V/1.87A (supports 5V charging and discharging at the same time);
● OUT2 output: 5V/4.5A (VOOC), 9V/2.5A, 12V/1.87A (only 5V for multiple ports to output at the same time);
● IN input (micro): 5V/3A, 9V/2A, 12V/1.5A;
● Type-C output: 5V/3.7A, 9V/2.22A, 12V/1.67A (output is available only when PD protocol is supported);
● Type-C input: 5V/3A, 9V/2A, 12V/1.5A;

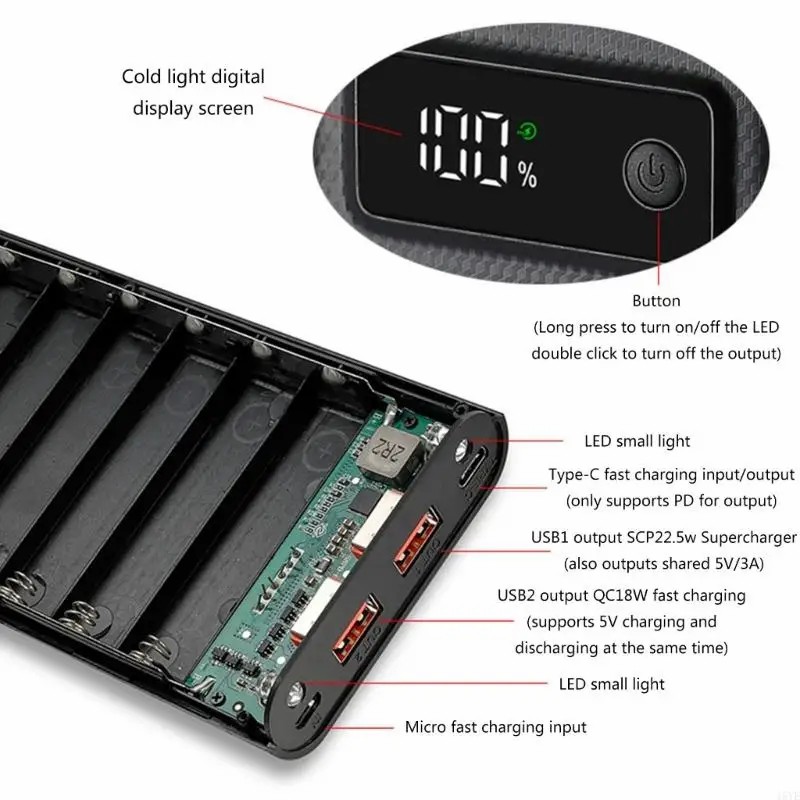

● Other functions: long press to turn on the LED light; reverse installation will not burn the motherboard.

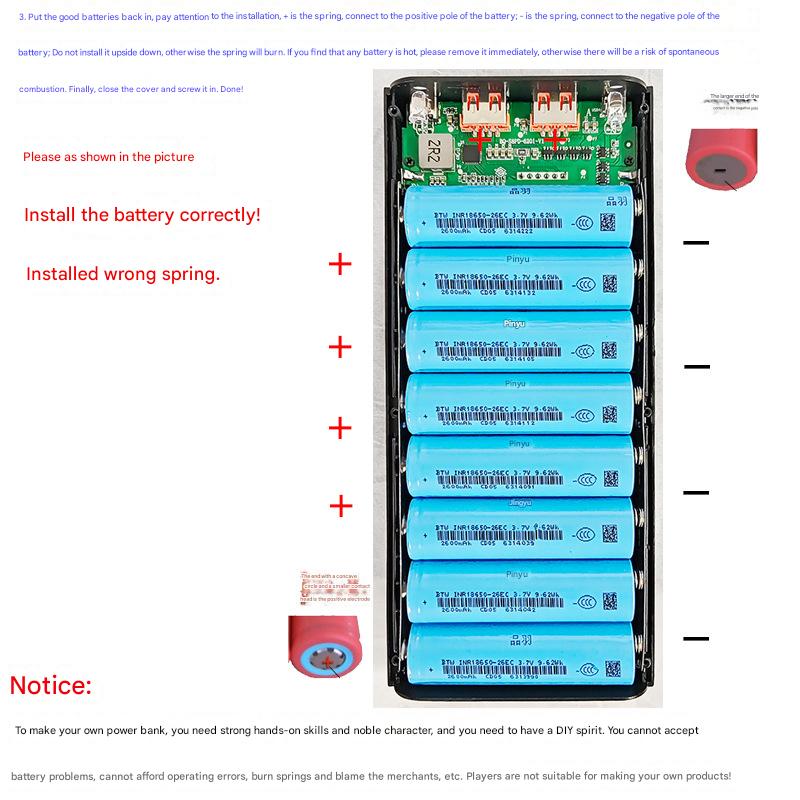

● Battery requirements: Flat-head 18650 battery without protection plate (65MM length), internal resistance within 50 milliohms, discharge above 1C; fast charging has high power, and using a disassembled battery will affect the experience.
Fast charging specifications (supported protocols):
● (With data transmission charging cable, communication handshake is successful with one of the following protocols)
● Support 5V, 9V, 12V voltage input/output;
● Compatible with BC1.2, Apple, and Samsung mobile phone fast charging;
● Integrated Huawei SCP25W super fast charging output protocol;
● OPPO VOOC22.5W flash charging output protocol;
● Integrated QC2.0/QC3.0 output fast charging protocol;
● Integrated FCP, AFC input/output fast charging protocols;
● Integrated USB C DRP protocol, supports input/output fast charging;
● Integrated USB Power Delivery (PD2.0/3.0) protocol
● Support PD2.0/3.0 input/output protocol
● Support USB C PD3.0 PPS output protocol
● Color: Black, White
● Effective voltage: 3.3V-4.15V (spring has voltage drop)
Note: If the private protocol of the mobile phone is not supported (USB does not support fast charging), you can use PD charging (TYPE-C output). The PD public protocol output is more stable.
Charging specifications:
● Supports 18W charging, the battery end current is automatically adjusted, and the charging current can reach 5A.
● (For the first charge, it is recommended to charge to 100%, and then charge for a few more hours to allow the battery to be thoroughly balanced)
Discharge specifications:
● Output current capability: 5V/3.1A; 9V/2.22A; 12V/1.67A
● Support line compensation, synchronous switch discharge 5V/2A efficiency can reach more than 95%
● Multiple protections, high reliability:
● Built-in input overvoltage and undervoltage protection;
● Integrated output over-current, over-voltage and short-circuit protection;
● Built-in battery overcharge, over discharge and over current protection
● Built-in IC over-temperature protection;
Package Includes:
● 1pc Case (Battery not include)
