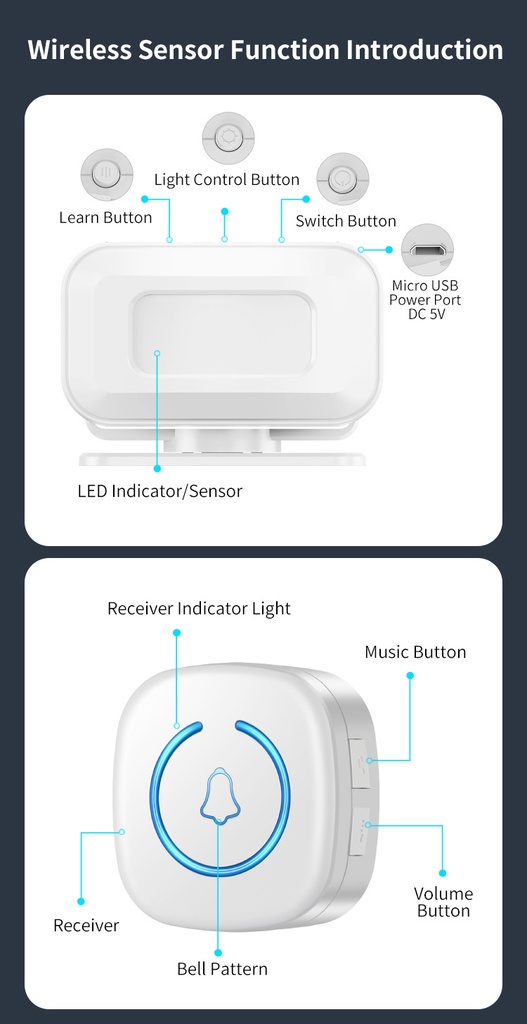

Functional Description
Infrared sensor set
● Short press the sensor power button to turn on, long press the sensor power button to turn off.

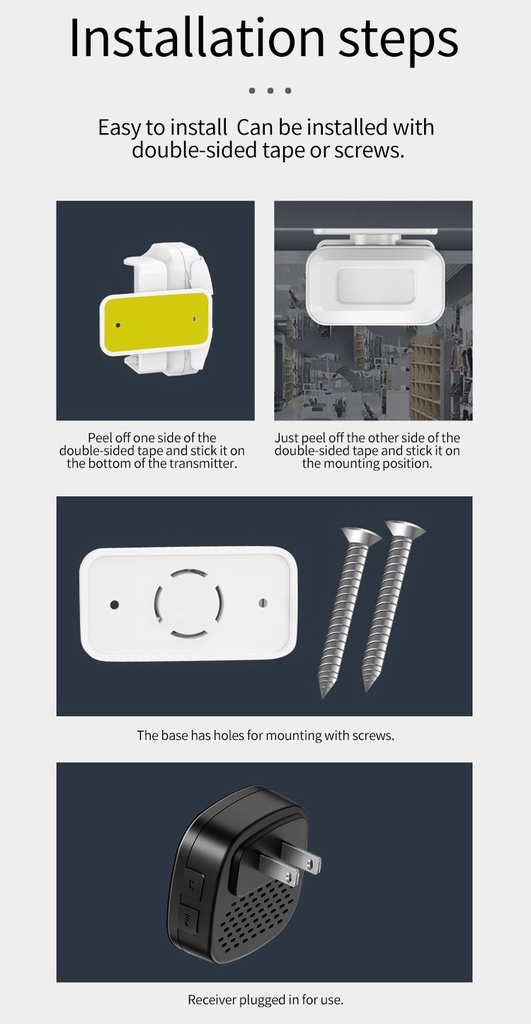

● The receiver is plugged in for use.

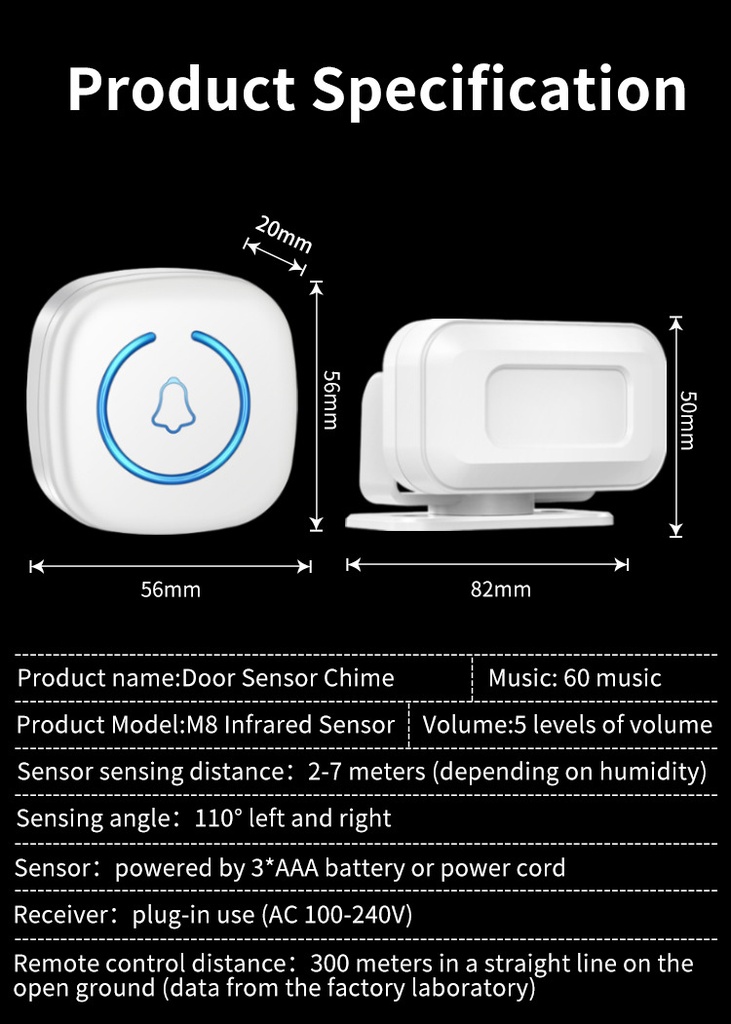

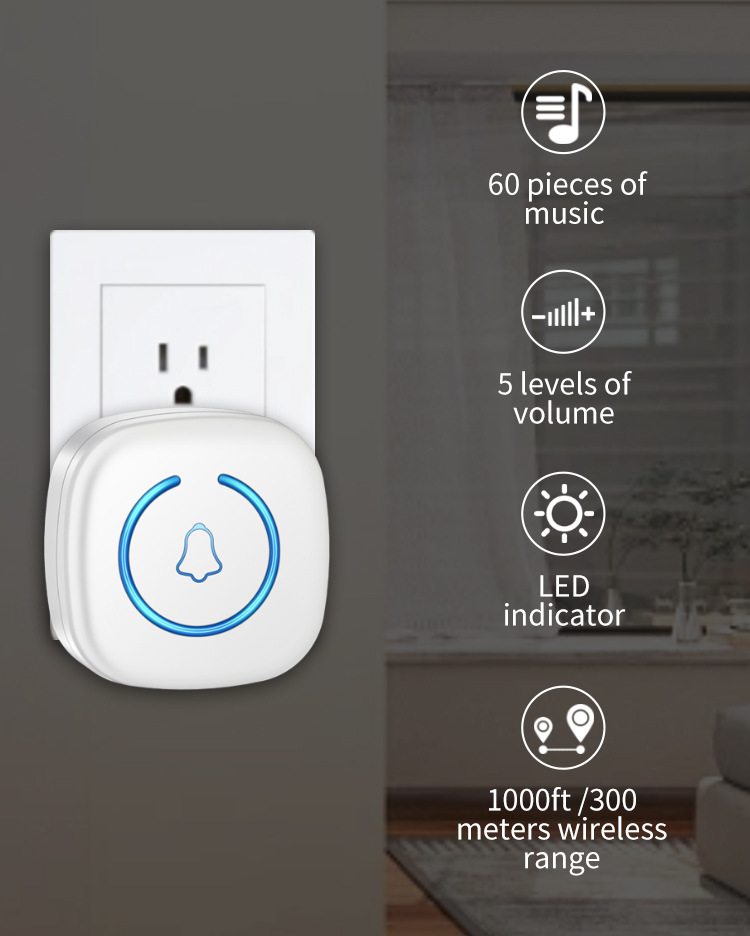

Product Specification
● Product name: Door Sensor Chime
● Music: 60 music
● Product Model: M8 Infrared Sensor
● Volume:5 levels of volume
● Sensor sensing distance: 2-7 meters (depending on humidity)
● Sensing angle: 110° left and right
● Sensor: powered by 3*AAA battery or power cord
● Receiver: plug-in use (AC 100-240V)
Remote control distance: 300 meters in a straight line on the open ground (data from the factory laboratory)
Learning code pairing and clearing
● Free Pairing Setting: Plug in the receiver, press and hold the volume key for about 4 seconds, see the indicator light is on, release the button to enter the code learning state, and at the same time, trigger the infrared sensor transmitter or split sensor to pair with the host computer.
● Setting different music: multiple infrared sensor transmitter or door magnetic sensor set corresponding to different music, select the desired music, long press the volume button for 4 seconds, the receiver indicator light will be on, enter into the learning state, at the same time, trigger the infrared sensor transmitter or split sensor at the same time.
● Clear code: When the receiver is not powered on, press and hold the volume button at the same time, turn on the power until the receiver light is on for a long time, the receiver clears all the sensors paired with it.
Attention
● Please try to use high quality alkaline batteries, avoid using ordinary carbon zinc batteries which have short battery life and are prone to leakage of electrolyte.
● Please avoid installing the product in the place where it is directly drenched by rain or exposed to sunlight for a long time.
● The actual remote control distance will vary depending on the use of environmental factors.
● Split Sensor uses 1*12V23A battery.(Batteries not included)

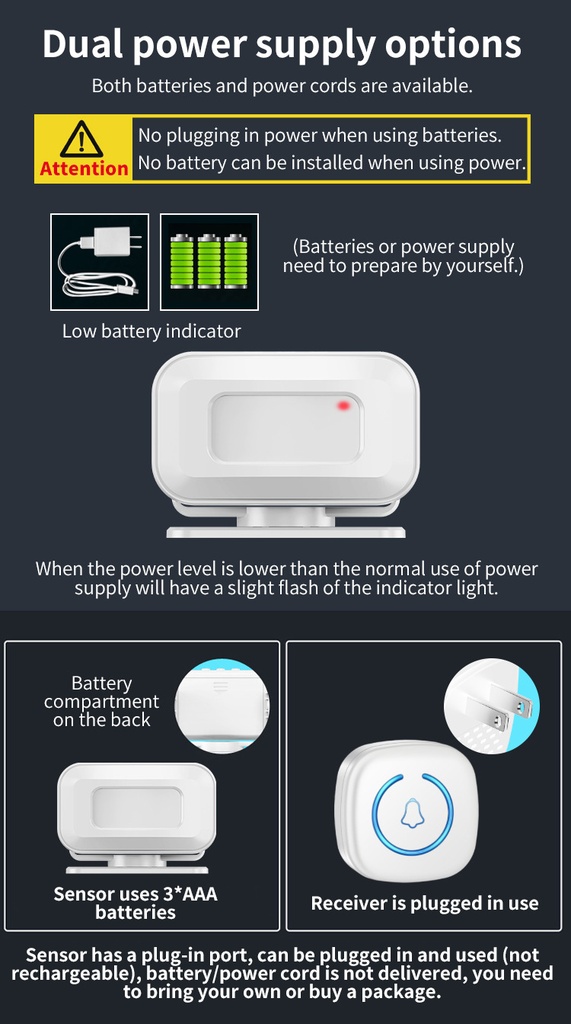

● Infrared sensor uses 3*AAA battery or Micro USB charging cable.(Batteries not included)
● Receiver plug-in use, voltage: AC 100-240V.
