Specifications
● Operating Voltage: DC 12V
● Control Current: 0-10A
● Humidity Range: 20-99% RH
● Control Accuracy: 1% RH

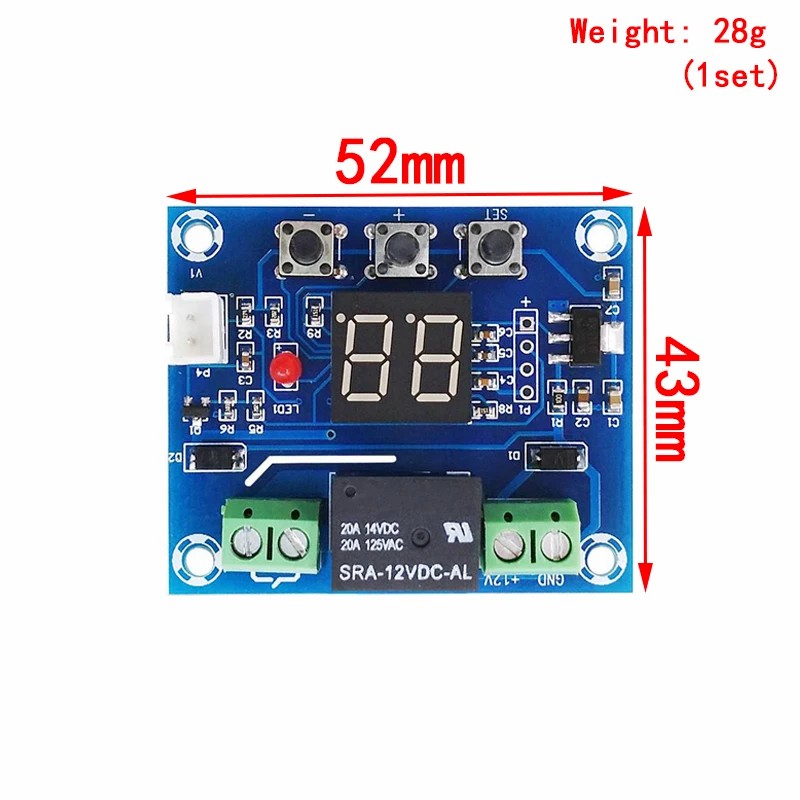

● Dimensions: 52*43*16mm
● Weight: Approximately 28g
Instructions:

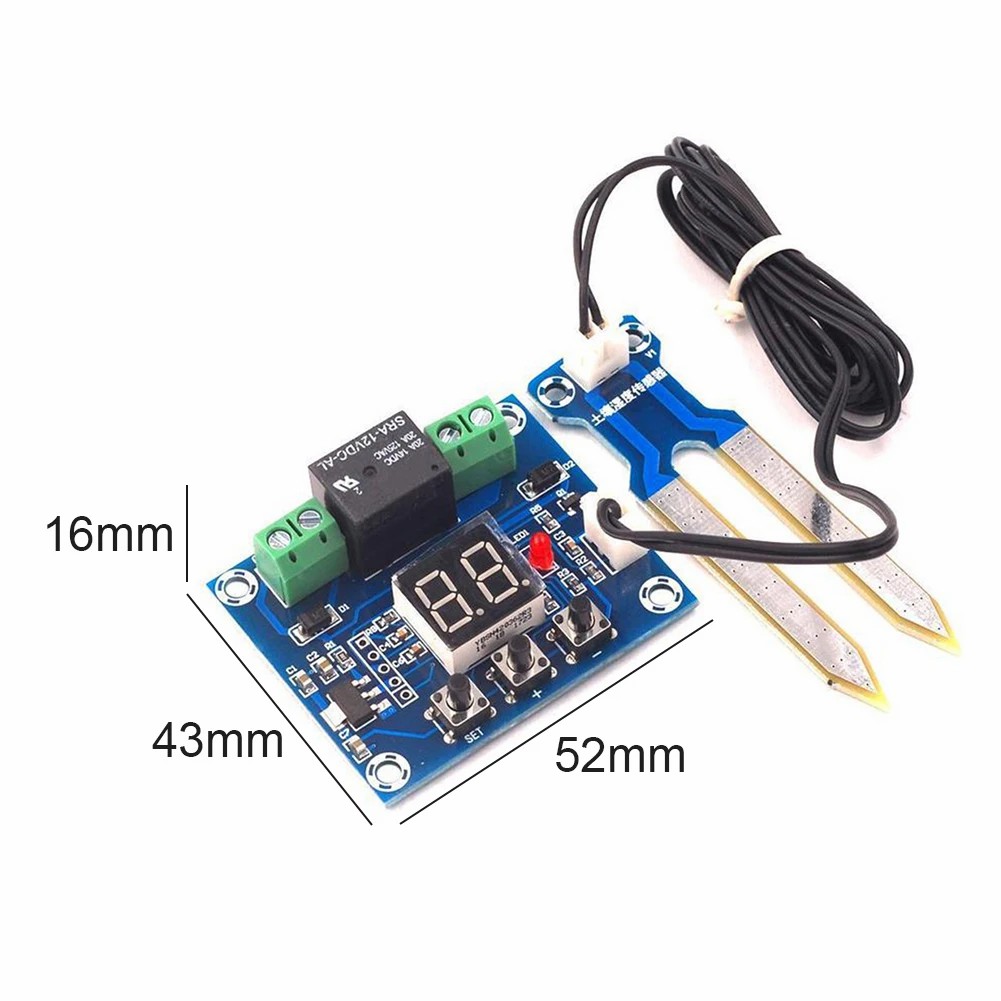

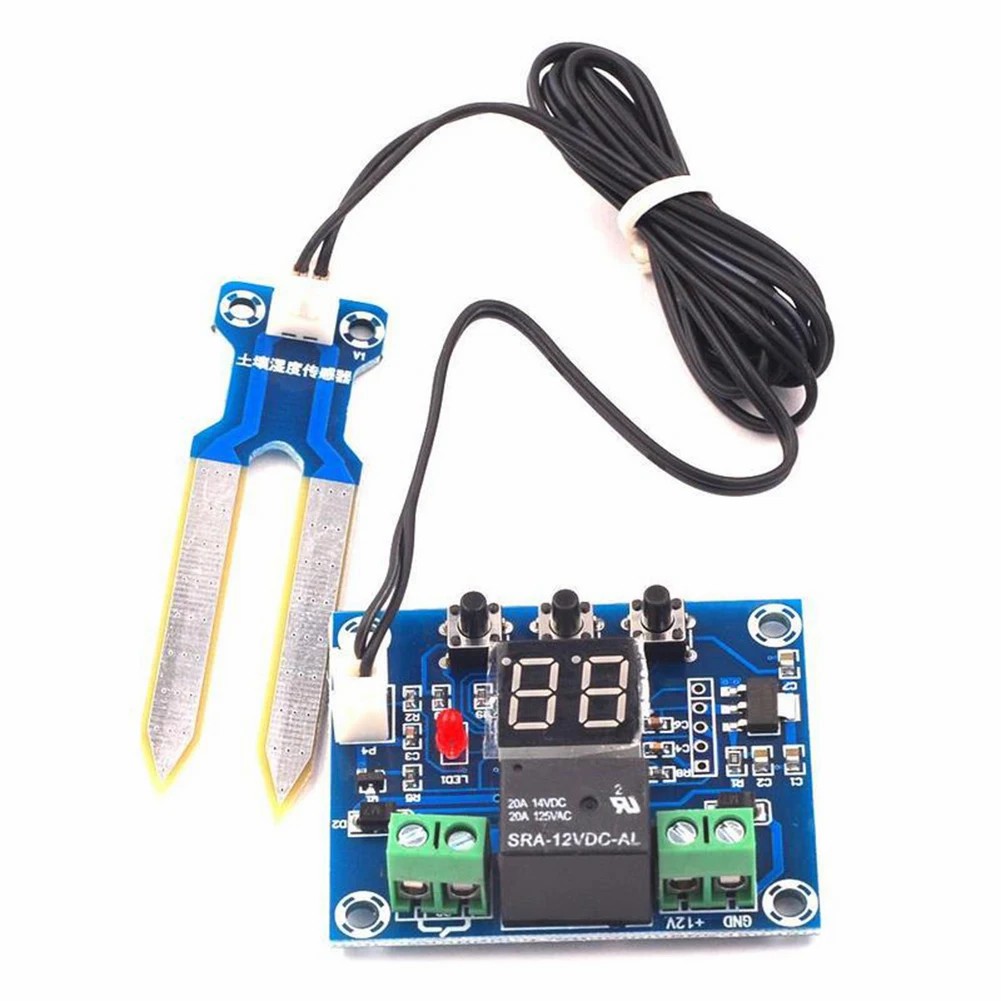

● The probe can be inserted directly into the soil.
● This digitally displays soil moisture.
● When the humidity falls below the set value, the pump activates and watering begins.
● When the humidity reaches the set value, watering stops.
● Operation is simple and intelligent, making it user-friendly.
Note:
Please follow the wiring diagram in the instructions. Select the appropriate wiring method based on the load voltage.
● 1. F0 Sets Stop Humidity (Solenoid Valve or Pump Stops Humidity Operation): Press the "SET" button to display "F0," then press the "SET" button to display the Start Humidity. Press the +/- button to set the humidity value.
● 2. F1 Sets Start Humidity (Solenoid Valve or Pump Starts Humidity Operation): Press the +/- button to switch to "F1," press the "SET" button to display the Stop Humidity. Press the +/- button to set the humidity value.
● 3. F2 Humidity Correction: No correction is required for normal operation. Using multiple modules to correct values simultaneously facilitates unified management.
