1. Product name: Desktop chassis power ATX adapter board
2. Mounting Type: Pedestal Mount
3. Application field: smart home
4. Compatible port: ATX (compatible with some BTX types)
5. switch: yes

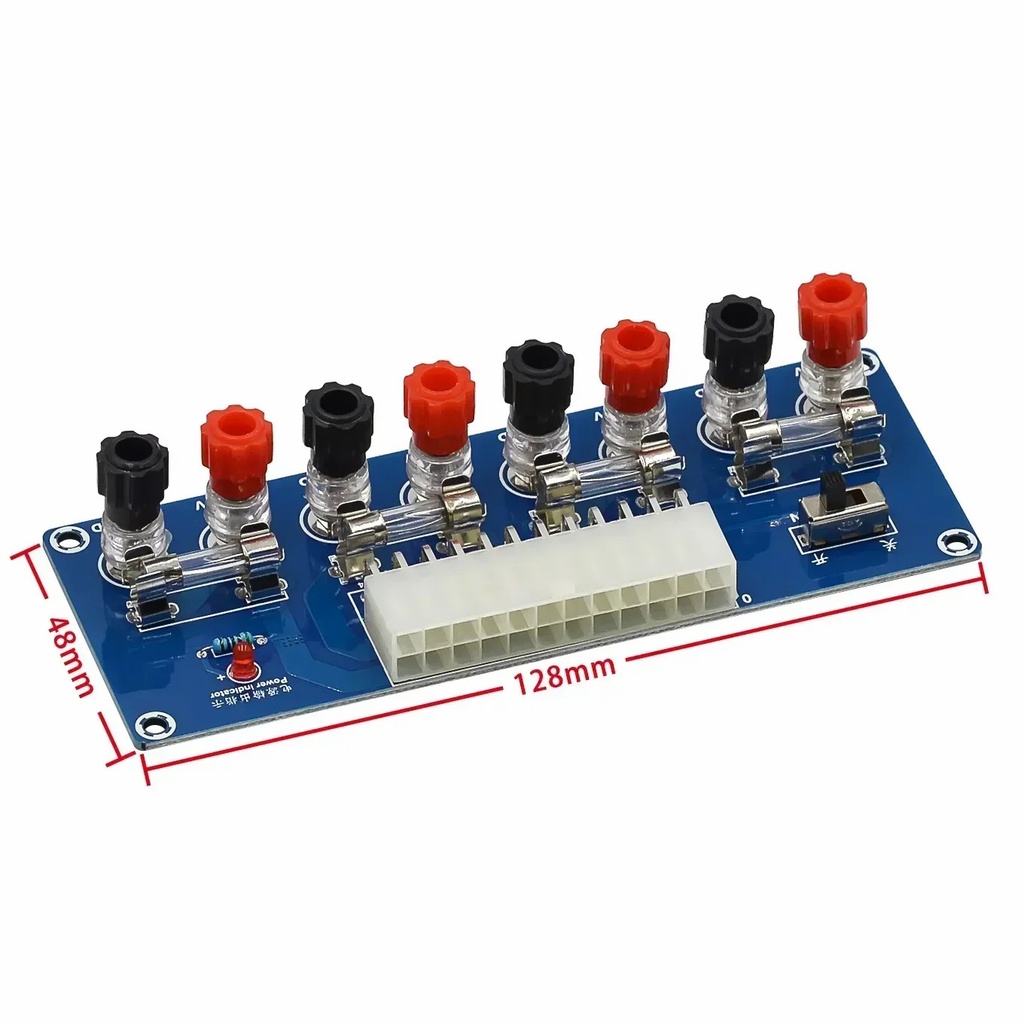

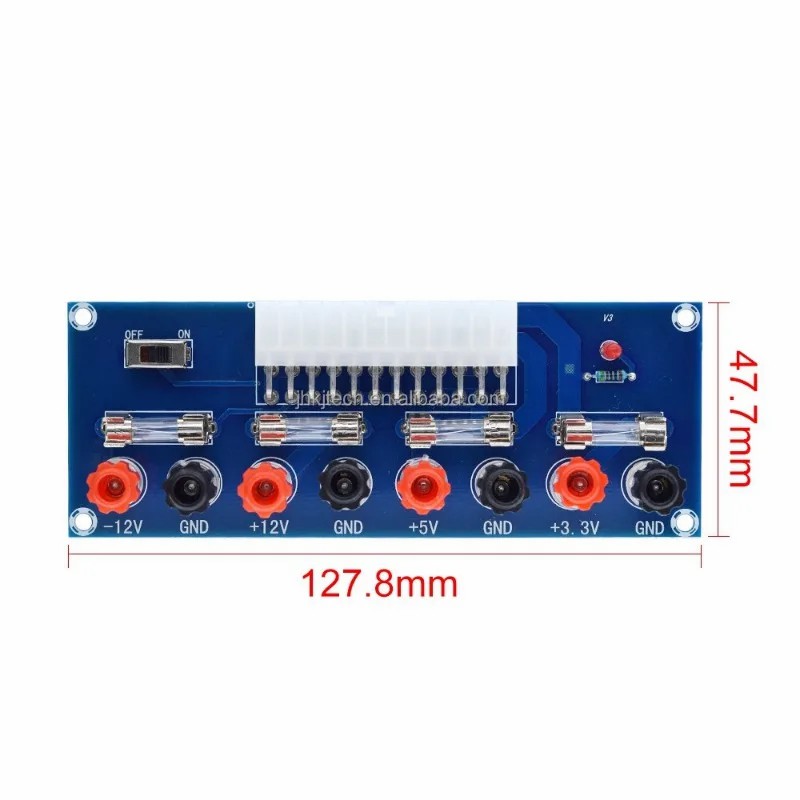

6. Size: 128*48*30MM
7. Number of PINs: 24PIN
Note:

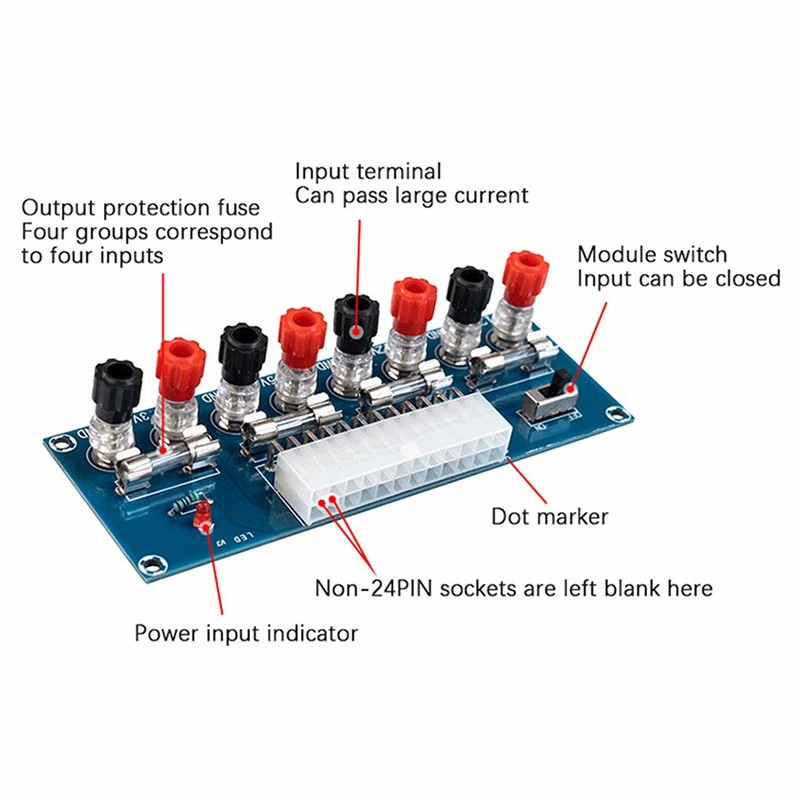

1. Please pay attention when using, if the power supply is a 20PIN port, and other ports other than 24PIN, the socket is inserted from the dot mark on the circuit board.
2. Number of output groups: four groups of different voltages,
(a). +12V to GND, +12V is the positive pole, GND is the negative pole, and the voltage is DC12V;
(b). -12V to GND, GND is the positive pole, -12V is the negative pole, and the voltage is DC12V;
(c). +12V to -12V, +12V is positive, -12V is negative, the voltage is DC24V.
(d). -12V is not loaded, it is just a logic potential provided by the motherboard, usually only about 300MA.
Package includes:
1* Desktop chassis power ATX adapter board
