XH-M601 Intelligent Charger Power Control Panel Automatic Charging Power 12V Battery Charging Control Board

Description
Product Introduction:
● 1.Name:12V charger power control board
● 2.Model:XH-M601
● 3.Power Supply Voltage:13.8-14.8V
● 4.Relay Operating Voltage:12.4V
● 5.Relay Disconnect Voltage:14.8V
● 6.Voltage Tolerance:+/-0.1V

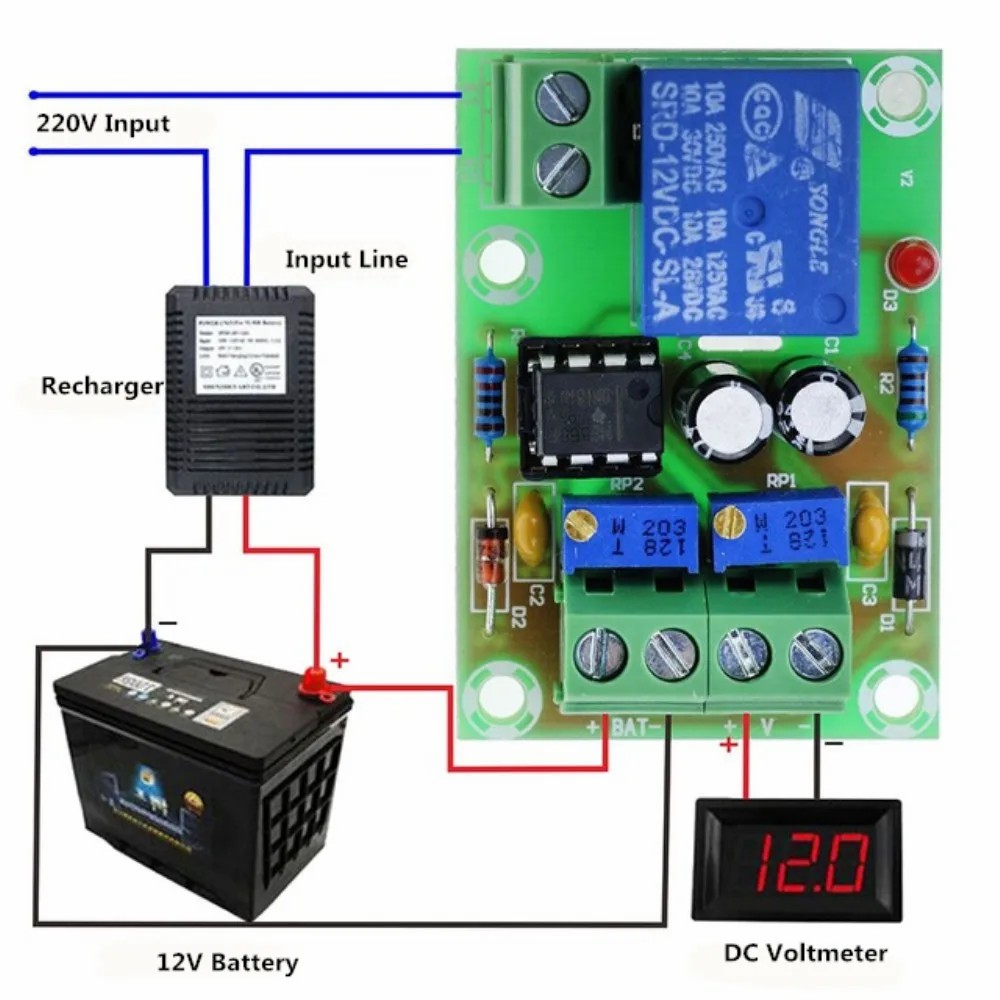

● 7.Voltage Detection Way:DC voltmeter
● 8.Charging Type:12V storage battery
● 9.Potentiometer Adjustment:RP1 RP2

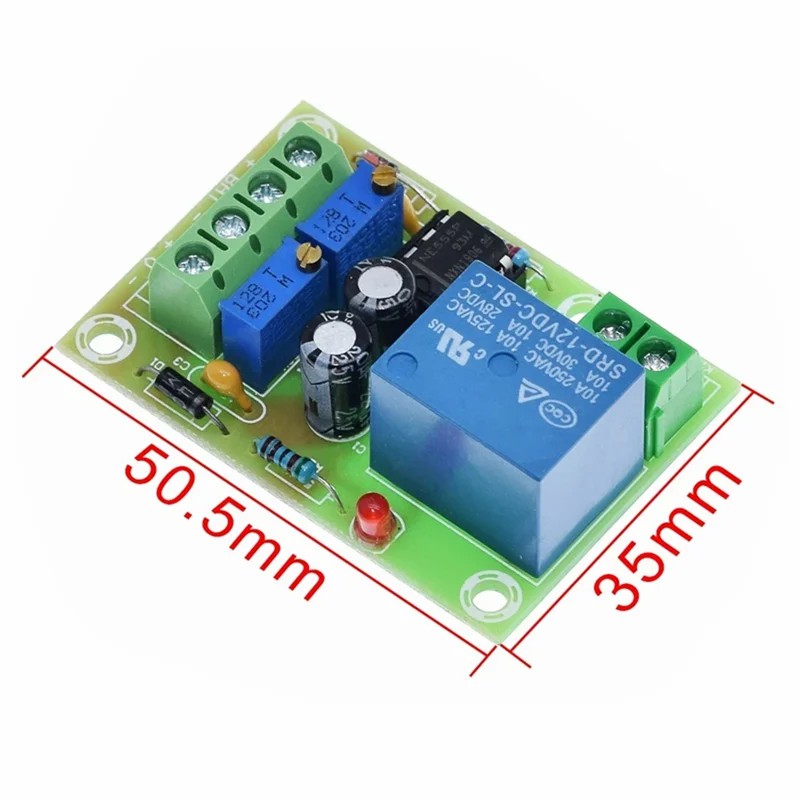

● 10.Size:50*32*18mm

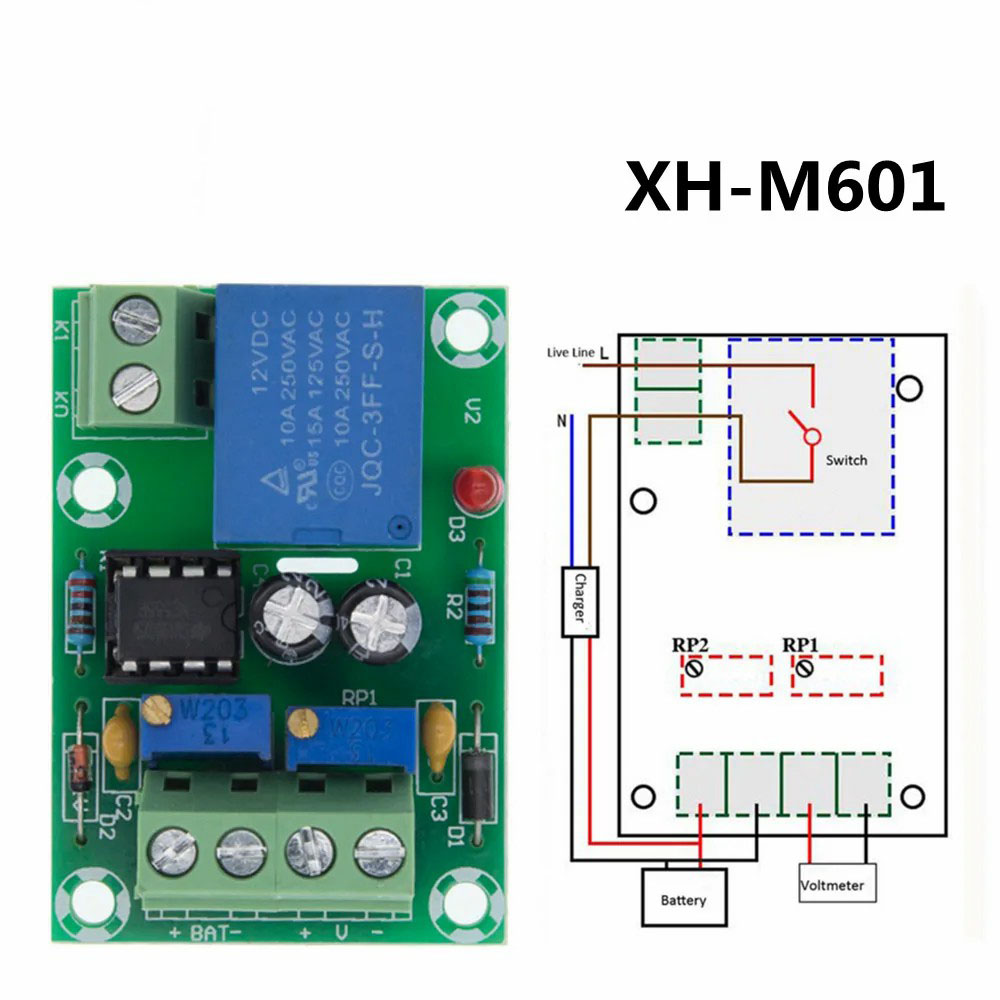

Potentiometer Adjustment:
● 1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
● 2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)


Package Include
● 1 * Charging Control Module
