● 1. The DC voltage protection module controls the on-off of the relay to control the output.
Press the "+" key once to display the protection value, and press the "-" key once to display the hysteresis.

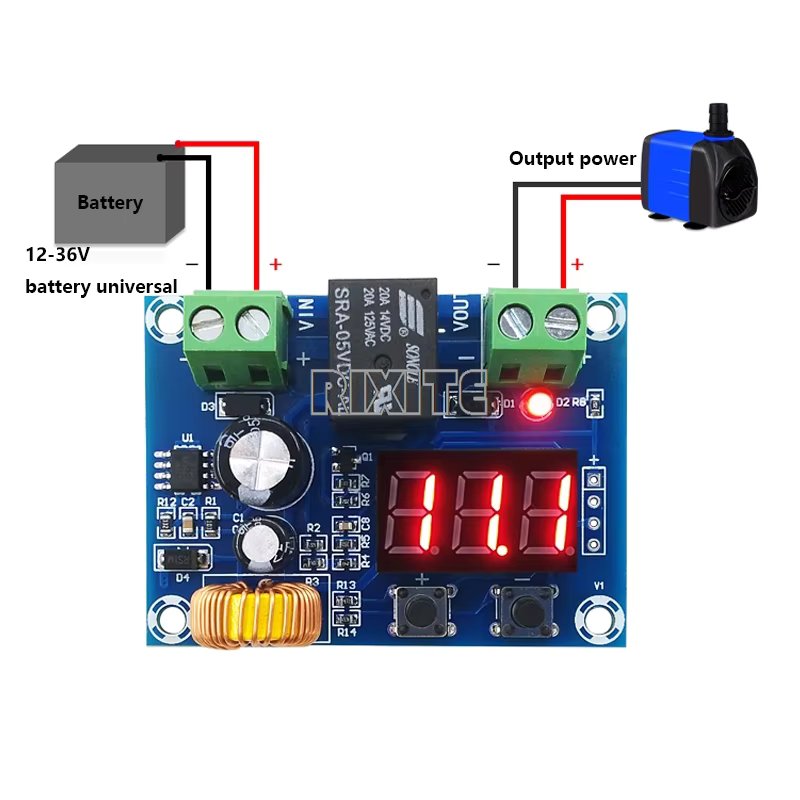

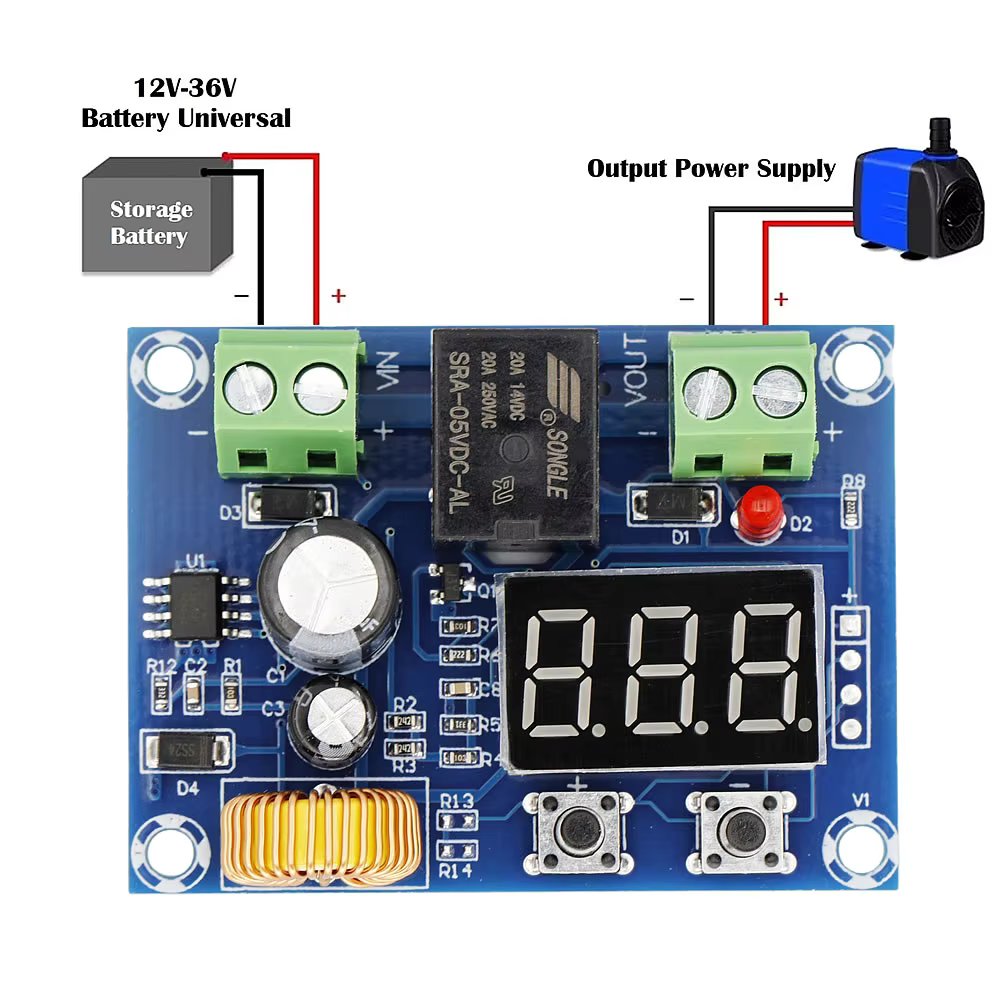

● 2. When the battery supplies power to the module, the output voltage is always equal to the battery voltage when the relay is closed,
and the power supply voltage is DC12-36V.
● 3. The working voltage of the motherboard cannot be lower than 7V, so the battery voltage must be >7V,
and the control accuracy is 0.1V, which is suitable for professionals to use.

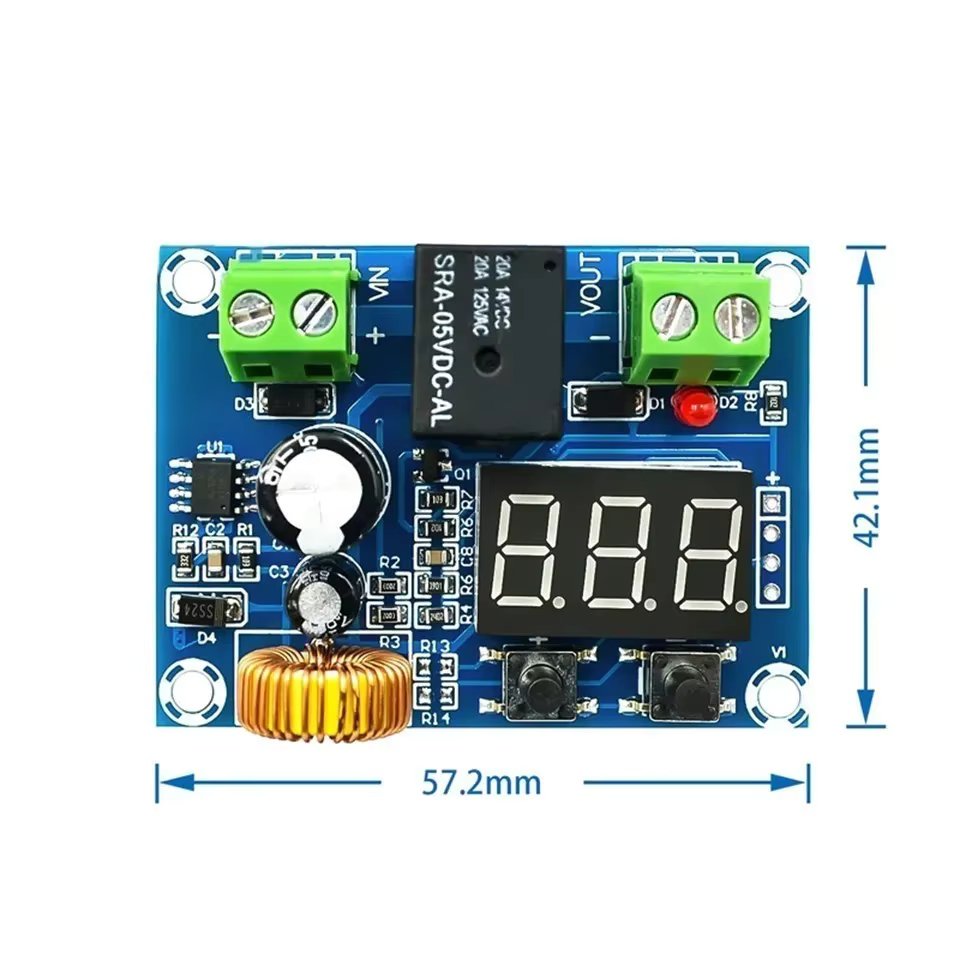

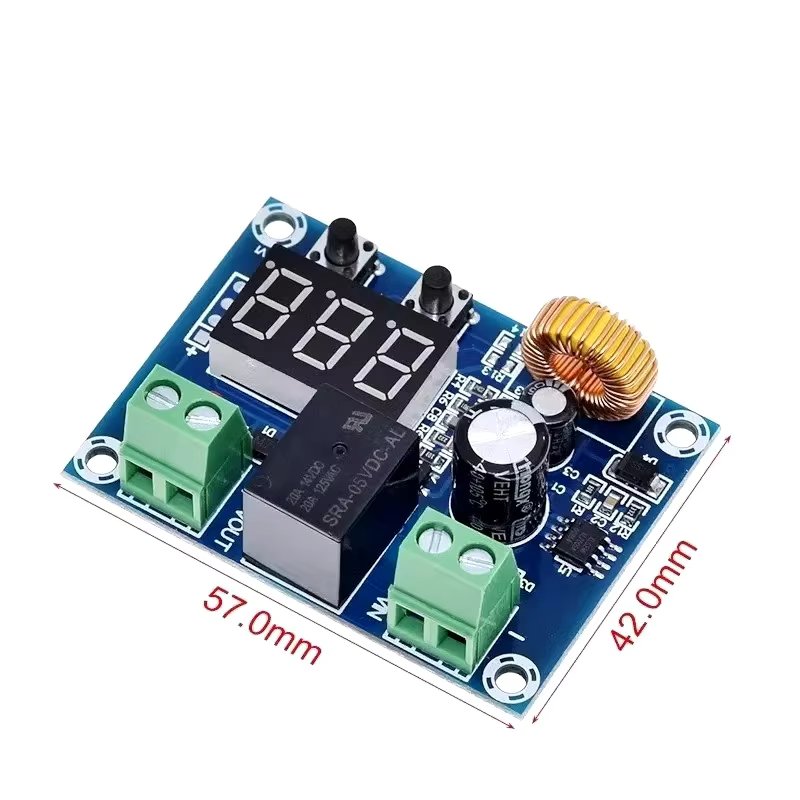

● 4. The dimensions of the protection module are approx. 57 x 42 x 19 mm / 2.2 x 1.7 x 0.7 inches,

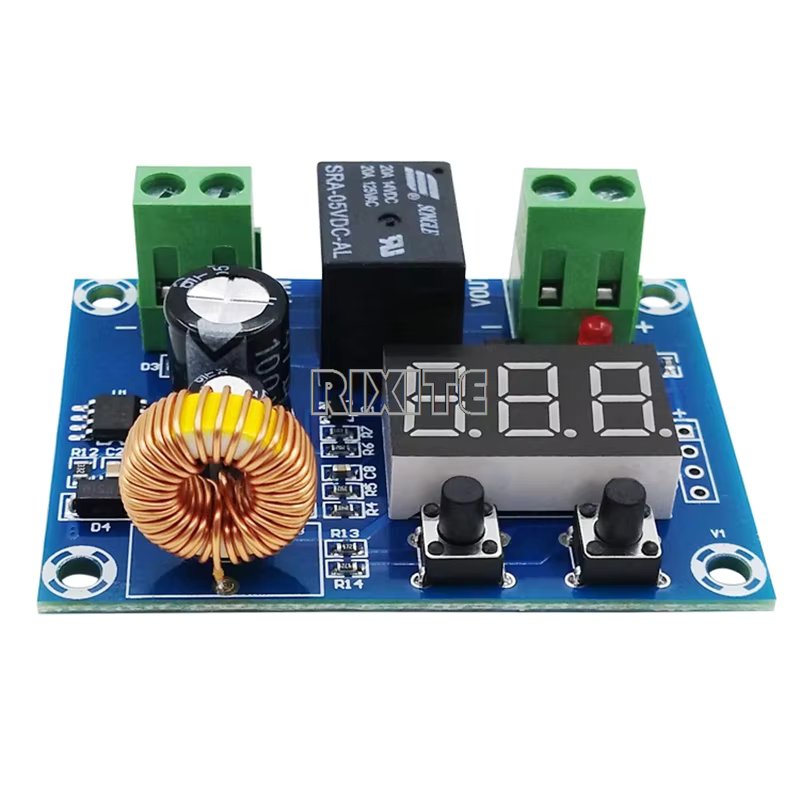

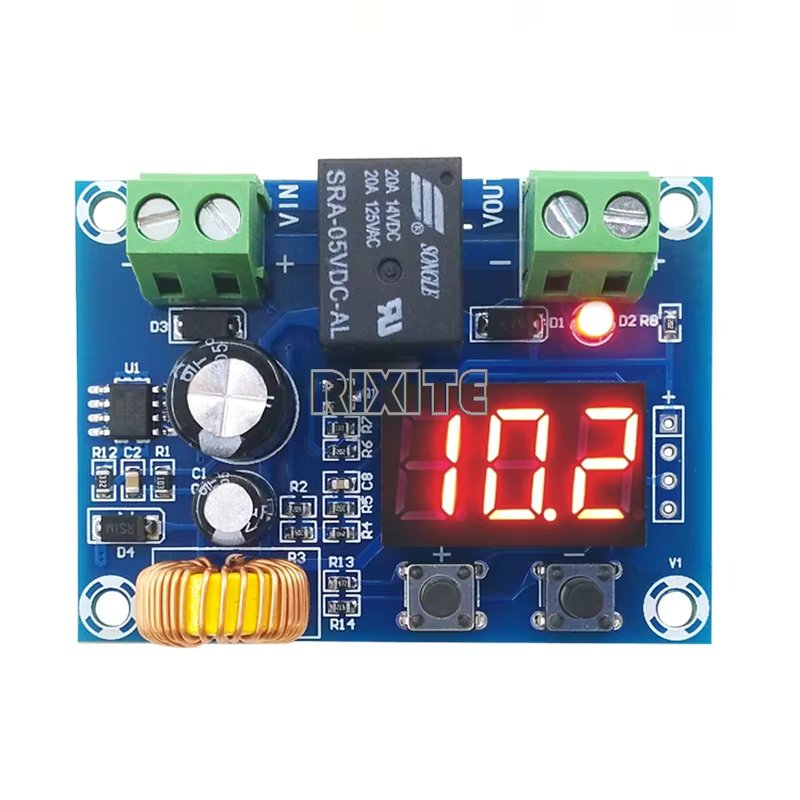

three-digit high-brightness nixie tube, normal display battery voltage.
● 5. This DC voltage protection module is suitable for 12-36V battery/lithium battery, the power consumption is less than 1.5W,
and it can work for a long time without power consumption.
Specifications

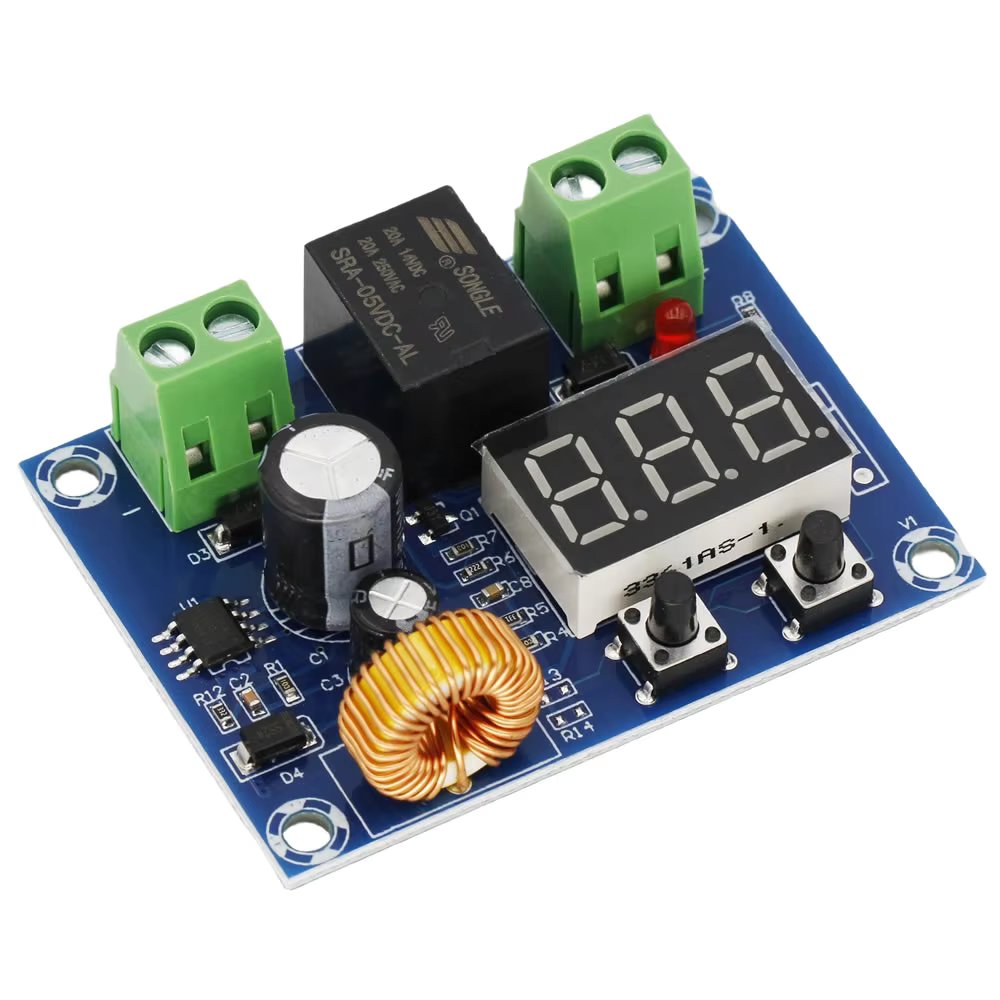

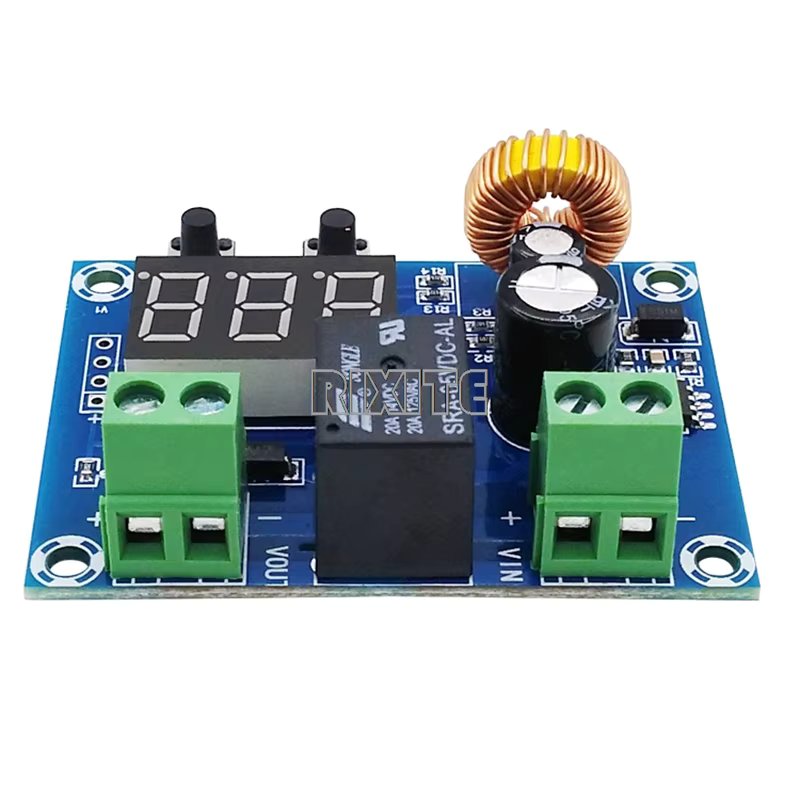

● Product name: Battery Overdischarge Protection Module

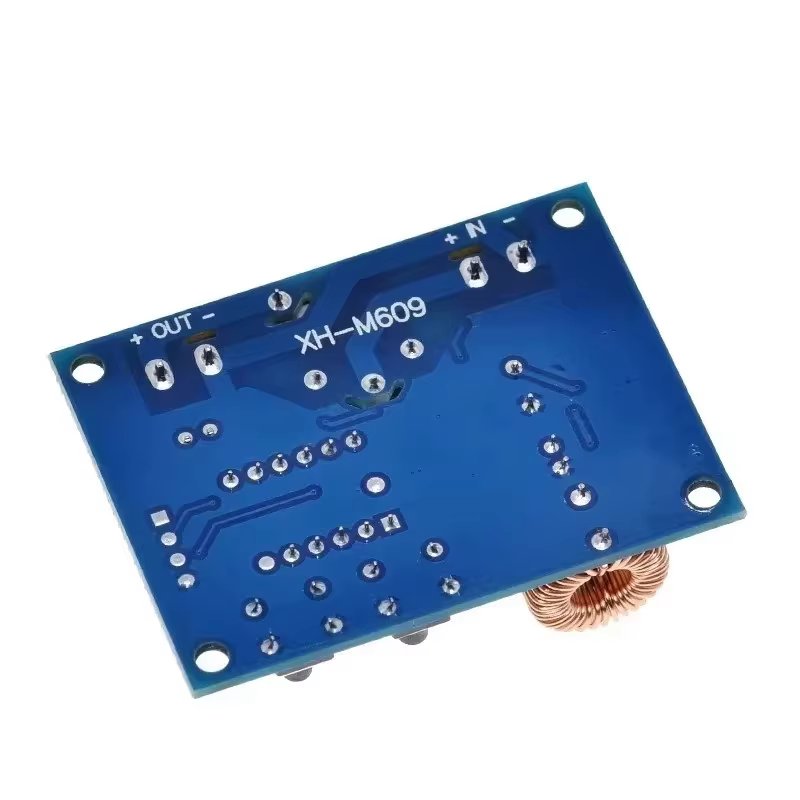

● Model: XH - M609
● Power supply voltage: 12V - 36V
● Output voltage: Equal to power supply voltage
● Control precision: 0.1 V
● Power consumption: Less than 1.5 W
● Scope of application: Various storage batteries, lithium batteries
● Net weight: 28 g
● Size: 57 * 42 * 19 mm
Package Include
1 * Battery Overdischarge Protection Module
