Feature:
● The voltage regulator has excellent linearity regulation and load regulation
● With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc
Application:
● Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc

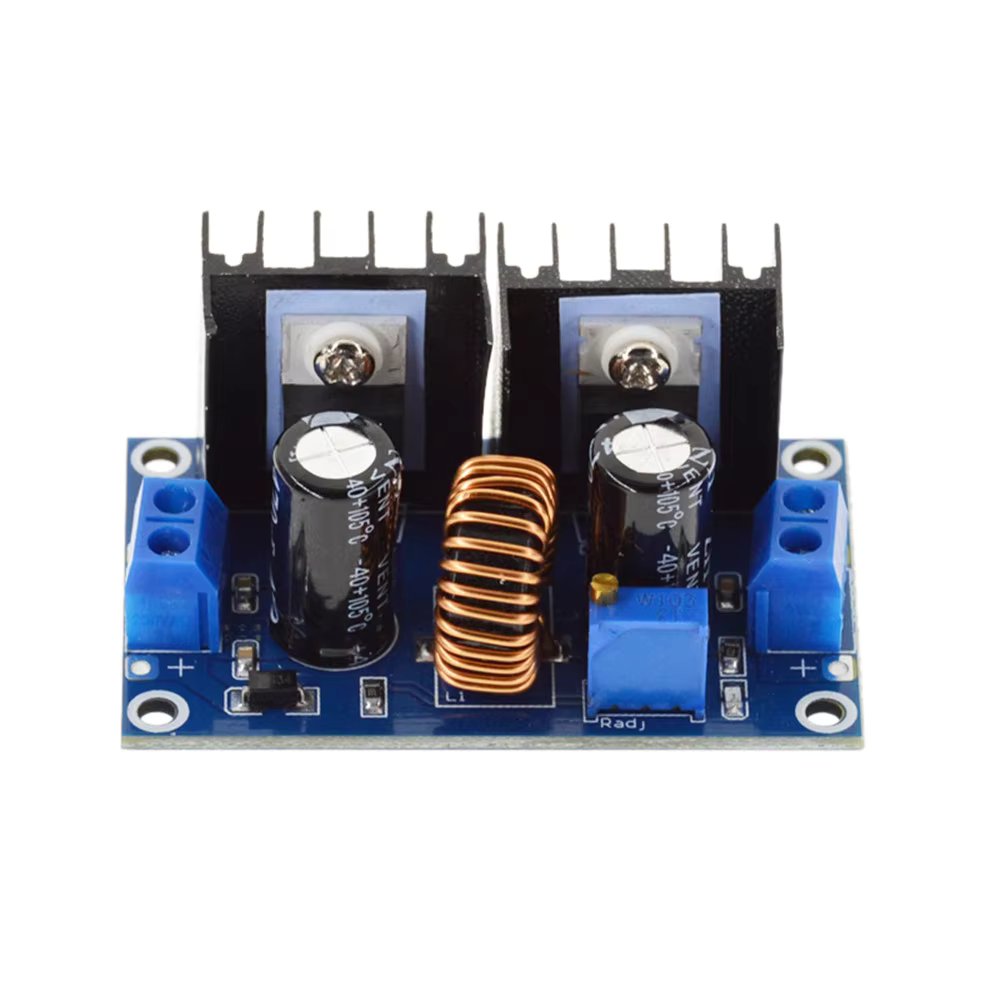

● Product name: DC voltage regulator
Specification:
● Voltage regulating mode: PWM modulation
● Input voltage: DC 4-38V
● Output voltage: DC 1.25-36V
● Maximum current: 8A(please add fan and make current less than 5A for a long term use)
● Maximum power: 200W
● Conversion efficiency: 95%
● Switching frequency: 180KHz
● Working Temperature: -45~+85°
● Size: 6x3.7cm/2.36x1.46inch
Note:
Please make sure there is a 2V voltage difference between input voltage and output voltage
The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
This is not a step up module, but a step down module
