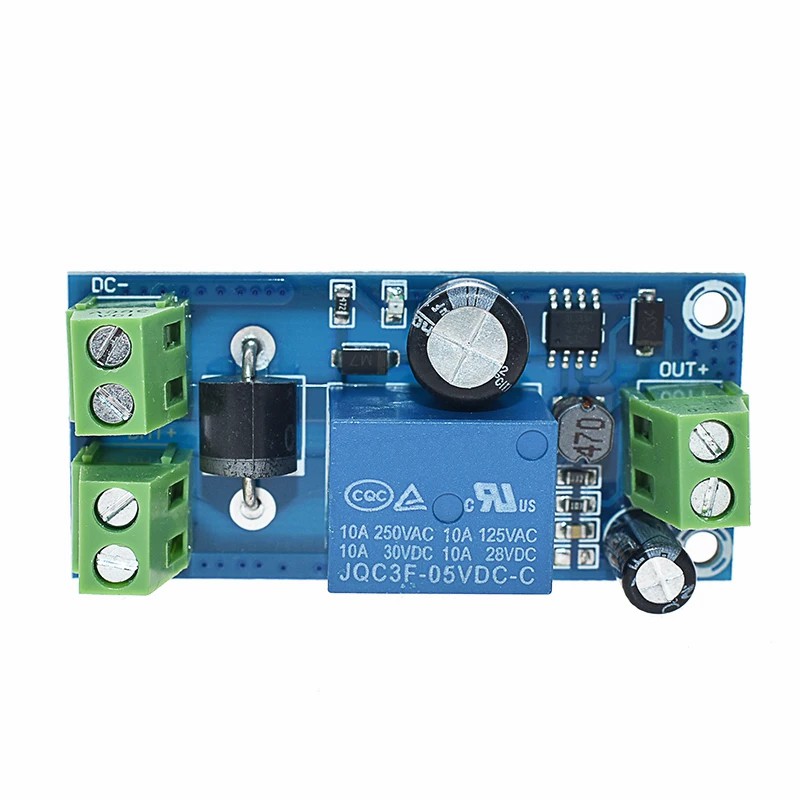

● Product Name: power failure automatic switching module
● Product model: YX850
● Scope of application: DC5V-48V
● Product load: 10A
● Product size: 61*30*18mm (length * width * height)
● Mounting hole size: 3mm
● Installation hole spacing: 23mm
● Product weight: about 22g

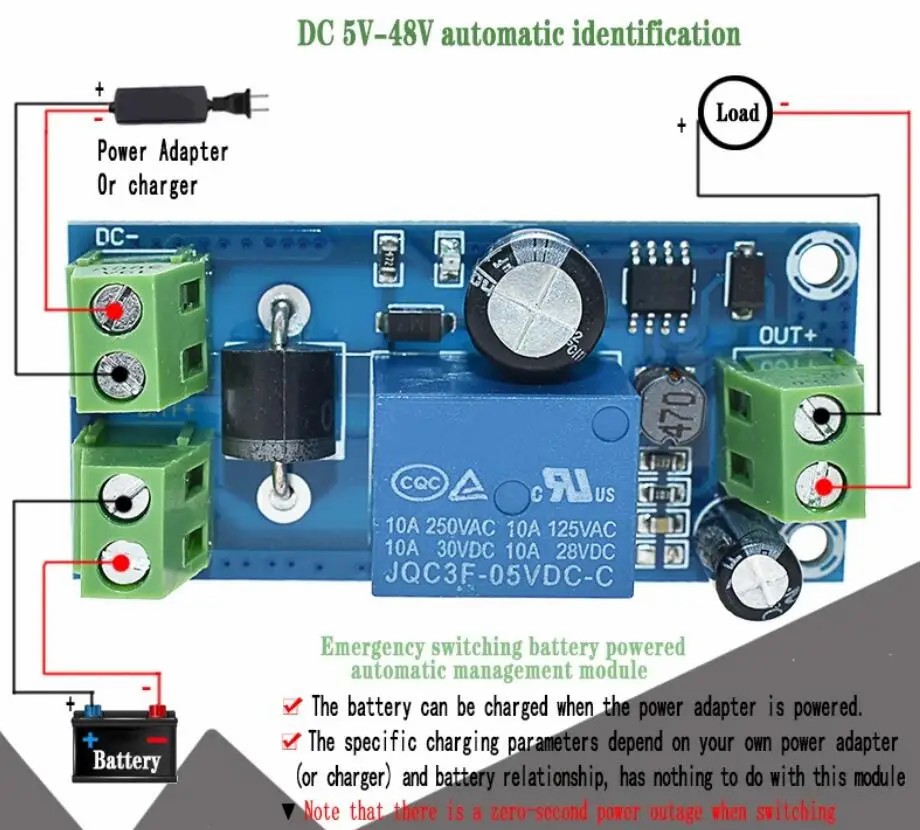

● Connect the DC terminal to the battery for charging when there is power
● The charging parameters have nothing to do with this module, but depend on your DC terminal, battery and load.
Be Careful
● 1. power off for a few tenths of a second during switching.
● 2. the power supply, battery and load shall have the same voltage.
● 3. when there is power at the DC end, it is preferred to supply power to the load.
● When the DC terminal is powered on, connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module)
● 4. when there is no power at the DC end, the automatic battery will supply power to the load.
